This project has been achieved to ministry of sciences with training
and after sales services by our company

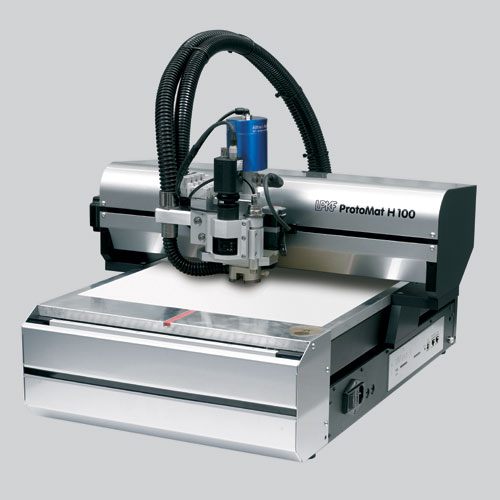

ProtoMat H100
High-end PCB milling with expanded working area
The ProtoMat H100 is a high-end PCB milling system offering maximum
performance and an expanded layout area at 15” x 14.4” for processing large
printed circuit board applications. Its 100,000 rpm spindle and high accuracy
tool depth setting features ensure board geometries are milled with the finest
precision allowing nearly unattended operations. This makes the H100 ideal for
RF and microwave applications.
1- the
circuit board plotter with PCB milling machine.
2- CAM
software (CD)

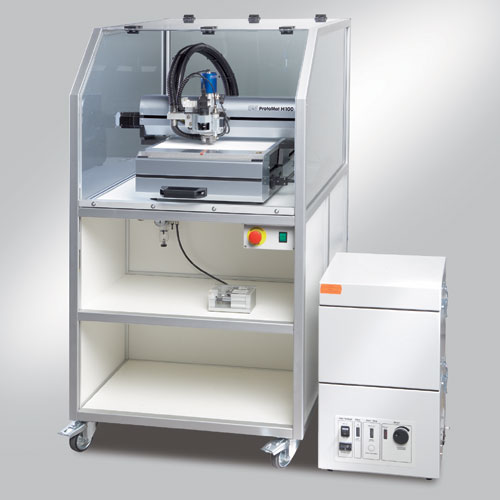

3- Acoustic
cabinet to reduce noise, with vacuum tabletop.
4- Camera
system
5- Dust
extraction machine with HEPA filter
6- Low noise
air compressor for PCB milling machine
7- Starter
kit (Plates, cutters, and end mill of various diameters -1 set)
8- tool set
with 1/8 " shaft and distance r
9- RF and microwave set with distance rings
10- Copper clad FR4 board
material
A set of 3 package with 10 units in each package for various
Dimension board.
the system tool kit provides
-
20 X protection film foil
-
10X filter fleece
-
20 paste packes
-
5x base material FR4 18/18 µm
-
1x screen print
-
Work accessories
-
hot air oven to dry the treated boards.
1- system
set to apply solder resist on prototype printed circuit boards. The set is
sufficient for 10 double sided boards in the dimensions of A4.
2- system to
apply image-data identity on the solder resist for prototype PC
3- UV
exposure to expos solder mask
4- Hot air
oven to dry the treated boards
5- A
programmable thermal treatment system 3200 watt with inner gas concentration N2
. lead free soldering – flow treatment.
The system has motorized drawers for easy and smooth access to the oven
LCD and USB connectivity to workstation for recording and control
Microprocessor controlled heating in to 3 phases
-
up to 220 co at 999 sec
-
up to 320 co at 600 sec
-
up to 230 co in 64 h
